Equipped with advanced features

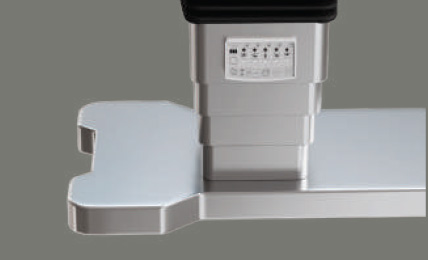

OT table Flat design

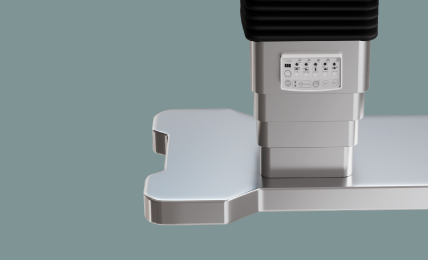

Innovative Flat Design

Flat design facilitates easy cleaning and enhances infection control effectiveness.

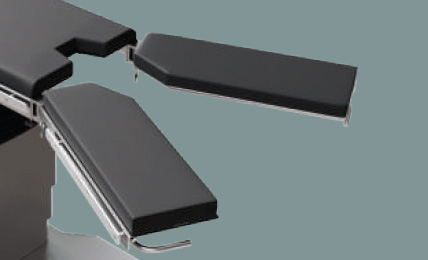

Divided leg section

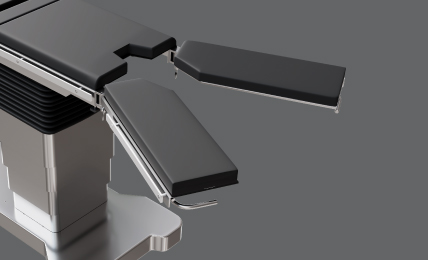

Divided Leg Section

Suitable for all major surgical procedures

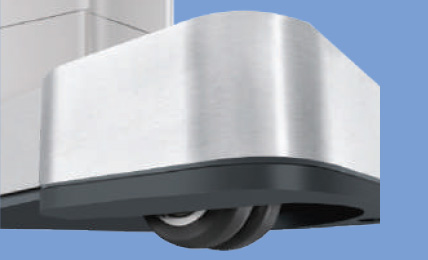

Double swivel castors

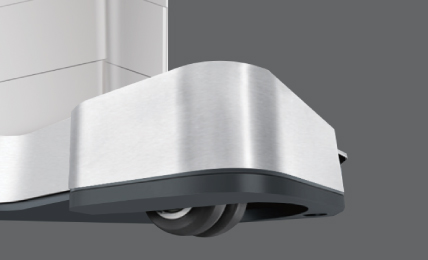

Smooth Mobility

Four double-swivel castors facilitate easy movement of the table in any direction.

Standard Features

Sliding Top

Sliding Table Top

Ayra OT Table-Feature

Floor Locking by Remote

Optional Features

Manual Override by Foot Pedal

Technical Specifications

Model AYRA K1
Length of Table 2000 mm
Width of Table Top 540 mm
Height of Table Min. 550 mm, Max. 1050 mm
Trendelenburg 25°
Reverse Trendelenburg 25°
Lateral Tilt 20°
Back Section Up/Down 80°/30°
Head Section Up/Down 40°/20°
Leg Section 0°-90°
Top Sliding 5" Reverse & 5" Forward
Floor Locking System Center Floor Locking By Remote

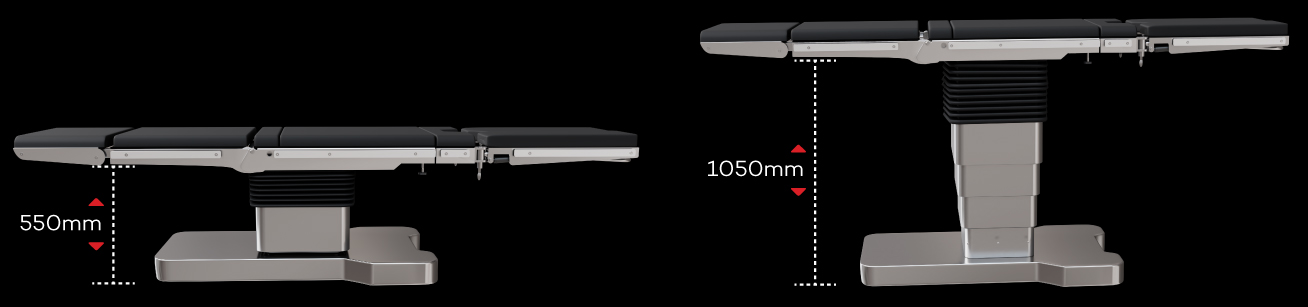

Height Adjustable

Adjustable maximum and minimum heights for comfortable working, seated or standing.

Ayra Surgical OT Table

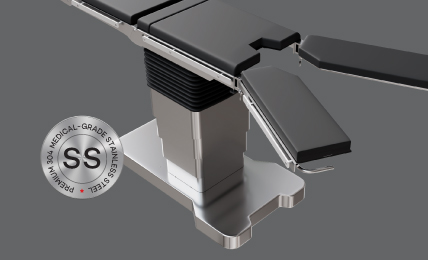

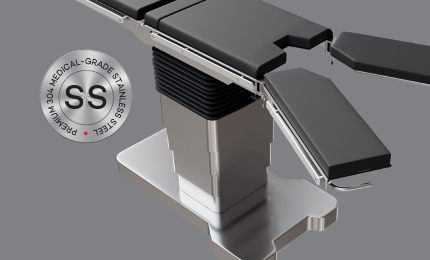

Premium 304 Medical-Grade Stainless Steel

Premium 304 Medical-Grade Stainless Steel

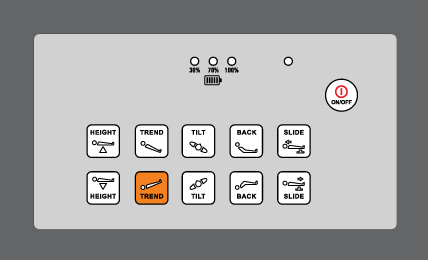

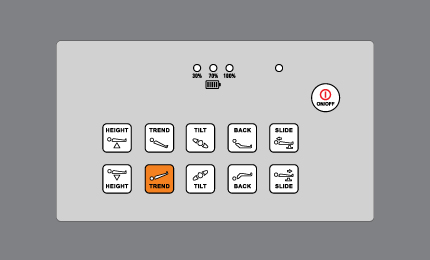

Standard Control Panel

Standard Control Panel

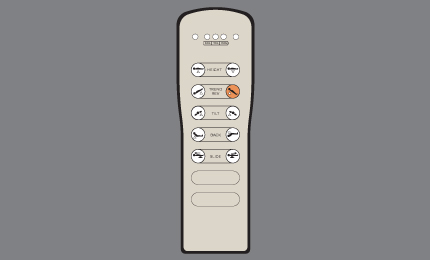

Standard Remote

Standard Remote

AYRA Ayra K Series Electro-Hydraulic OT Table

Salient Features

  • Modular tabletop design tailored for various surgical disciplines.
  • Easy Click mounting point for quick adaptation to different surgeries and patient heights.
  • Memory pad with antistatic, waterproof design.
  • Standard override panel control for enhanced safety.
  • Adjustable maximum and minimum heights for comfortable working, seated or standing.
  • Longitudinal Slide offers up to 250mm of movement for C-arm access without patient repositioning.
  • Weight load capacity of 350kg ensures safety and stability.
  • Head and Leg Section operated through Gas spring

Standard Accessories

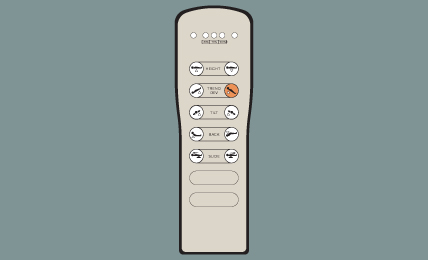

  • Remote
  • Control Panel
  • Arm Rest
  • Side Support
  • Shoulder Support
  • Leg Support
  • Anesthetic Screen
  • Clamps
  • Mattress

Table Positions

  • Height Adjustment - Up & Down
  • Lateral Tilt - Left & Right
  • Trendelenburg & Reverse Trendelenburg
  • Flex Position & Reflex Position
  • Sliding Table Top
  • Manual operated In-built Kidney Bridge
