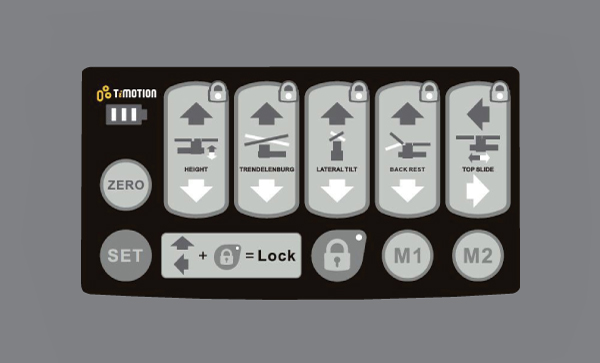

    Optional Standard Control Panel

    (Optional) Standard Control Panel

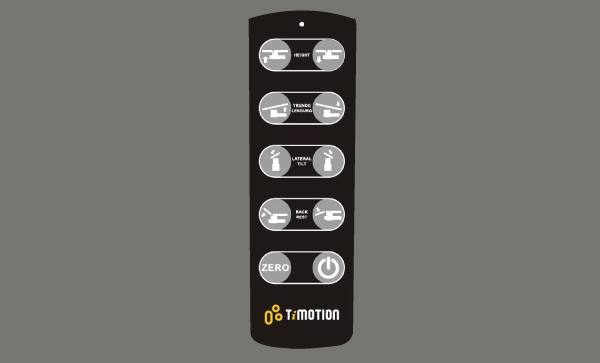

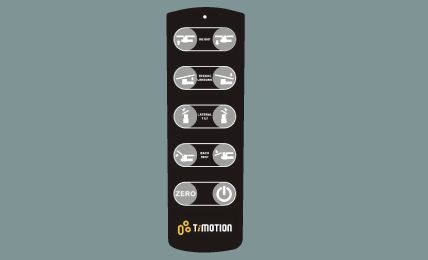

    Standard Remote

    Standard Remote

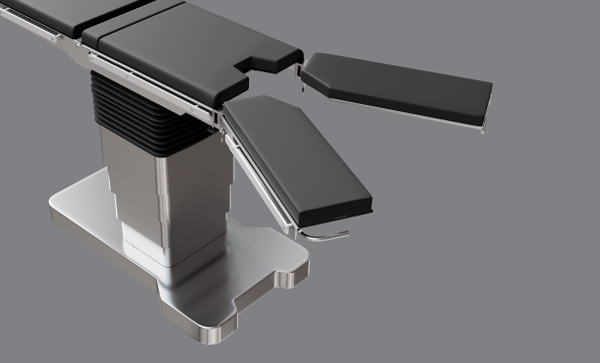

    Optional Split Leg Section

    (Optional) Split Leg Section

    Standard Features

    Ayra OT Table-Feature

    Floor Locking by Remote

    Optional Features

    Sliding Table Top

    Sliding Table Top

    Wireless Remote

    Wireless Remote

    Manual Override

    Manual Override

    Control Panel

    Control Panel

    Technical Specifications

    Model AYRA K2
    Length of Table 2000 mm
    Width of Table Top 540 mm
    Trendelenburg 25°
    Reverse Trendelenburg 25°
    Lateral Tilt 20°
    Back Section Up/Down 80°/30°
    Head Section Up/Down 30°/55°
    Leg Section 0°-90°
    Floor Locking System Center Floor Locking By Remote

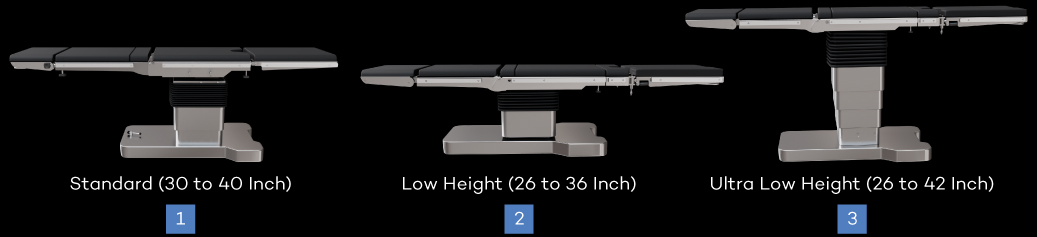

    Available in 3 different variants

    Adjustable maximum and minimum heights for comfortable working, seated or standing.

    Ayra K2 Surgical OT Table Manufacturer

    AYRA Ayra K2 Series Electric Surgical Table

    Salient Features

    • Modular tabletop design tailored for various surgical disciplines.
    • Easy Click mounting point for quick adaptation to different surgeries and patient heights.
    • Memory pad with antistatic, waterproof design.
    • Adjustable maximum and minimum heights for comfortable working, seated or standing.
    • Encentric Pillars
    • Stainless Fitting
    • Detachable, head, leg & Pelvic section
    • Five Sectional Radio - Translucent Top.

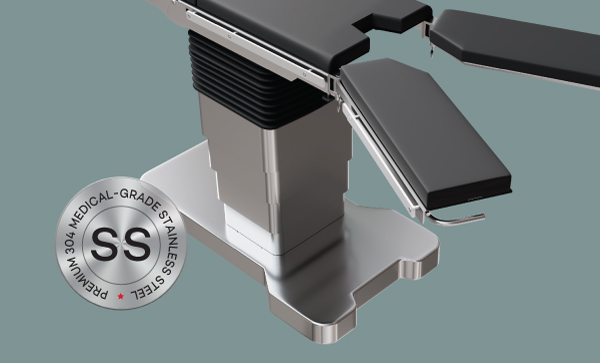

    • Base and Cover made of attractive, easy to clean Stainless Steel.
    • Sophisticated mechanics provide smooth, step less articulation of the table top for precise patient positioning.
    • Standby Battery Back-up with recharging circuit.
    • Longitudinal Slide offers up to 250mm of movement for C-arm access without patient repositioning.
    • Weight load capacity of 150kg ensures safety and stability.
    • Head and Leg Section operated through Gas spring

    Standard Accessories

    • Remote
    • Arm Rest
    • Side Support
    • Shoulder Support
    • Leg Support
    • Anesthetic Screen
    • Clamps
    • Mattress

    Table Positions

    • Height Adjustment - Up & Down
    • Lateral Tilt - Left & Right
    • Trendelenburg & Reverse Trendelenburg
    • Flex Position & Reflex Position
    • Manual operated In-built Kidney Bridge
