    Curvv

    Surgical LED Light

    Rotation Body in Aluminium

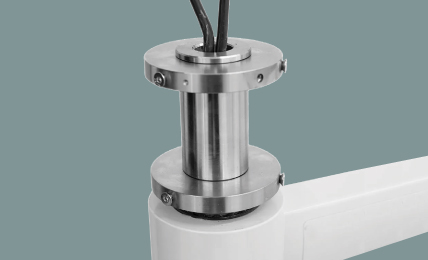

    ISO standard base plate
    ISO standard base plate design to ensure no shaking of light during movement.

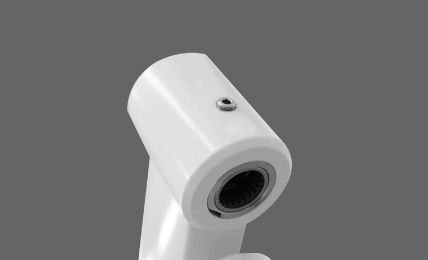

    High quality bearing
    High-quality bearing delivers no drift and seamless, flexible rotation.

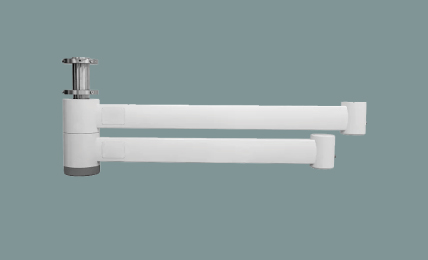

    High strength aluminum
    High-strength aluminum construction for rust-free and long-lasting powder coating.

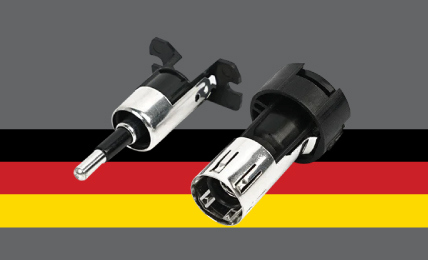

    360° Rotatable
    360° Rotatable German Connector

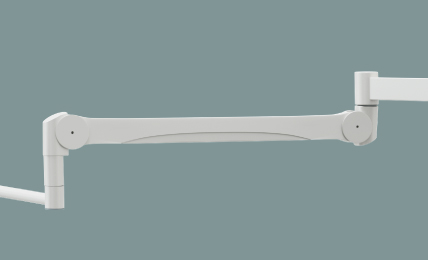

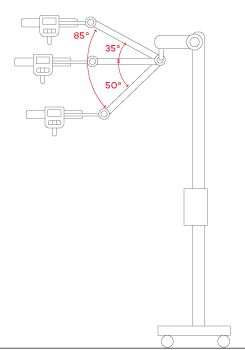

    German spring arm
    German spring arm, designed for dual movement and complete 360° flexibility.

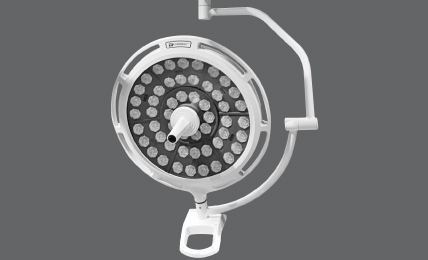

    Special European designed double movement dome ensures easy, smooth motion.

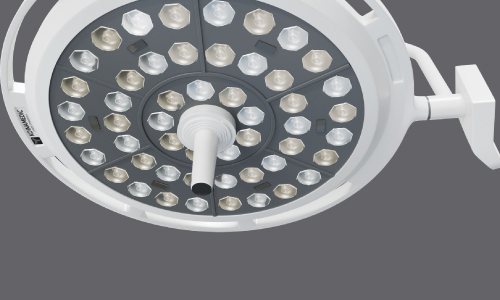

    Focusing System

    Focusing System

    The brightness of different LEDs is adjustable to change the spot size, which will avoid the possible occurrence of mechanical malfunctions.

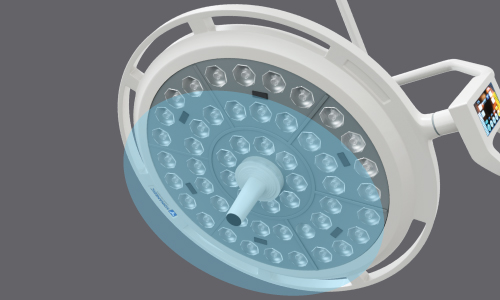

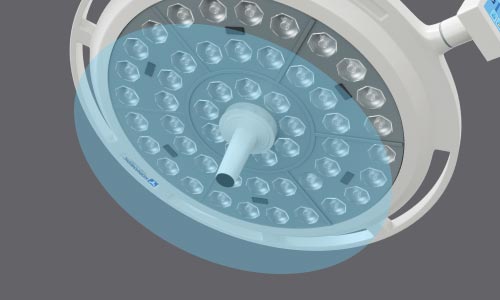

    Safety Glass for Lens Protection

    Safety Glass for Lens Protection

    We offer LED lights with protective fire resistant ESG safety glass cover for scratch proof, fast disinfection process and improve the light penetration. It is made of monolayer safety glass which protects the lens from ultra-violet and infrared rays.

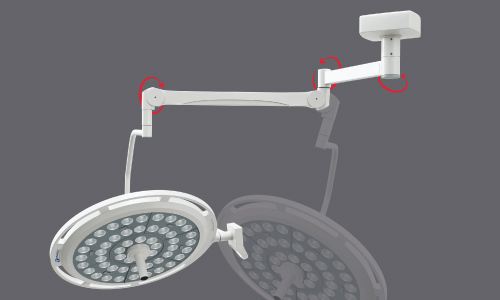

    360 Rotational Alluminium Body

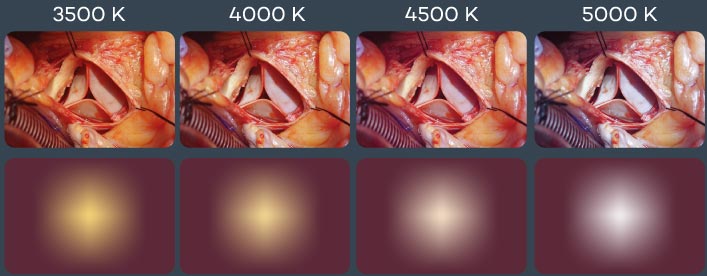

    Adjustable Colour Temperature

    Komax LED lights are capable of producing a wide range of color temperatures between 4000-5000 K, allowing users to adjust the lighting to suit different purposes, environments, and preferences. Adjustable color temperature allows surgeons to fine-tune the lighting to match their specific needs for different procedures.

    Adjustable Colour Temperature

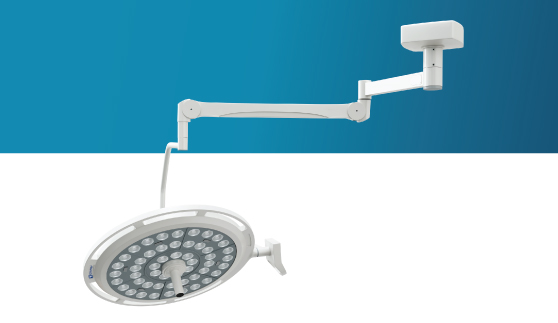

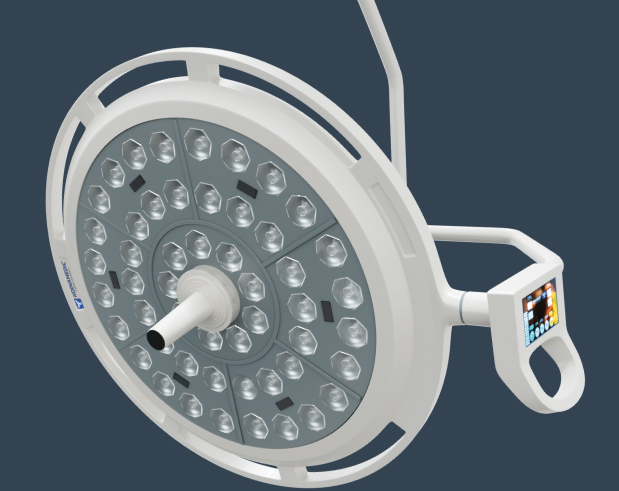

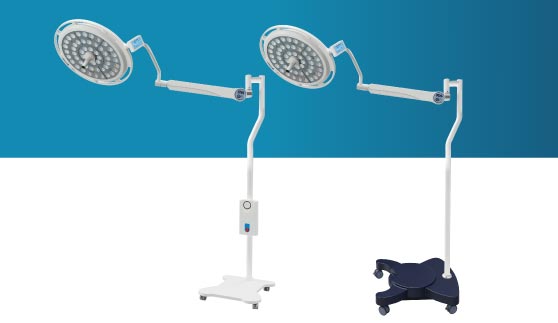

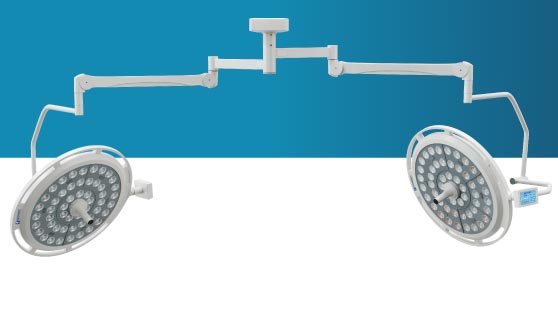

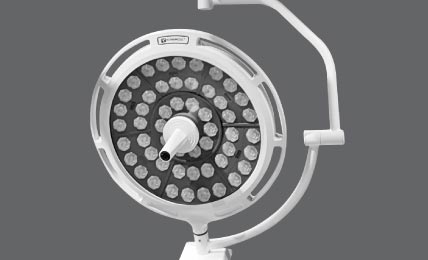

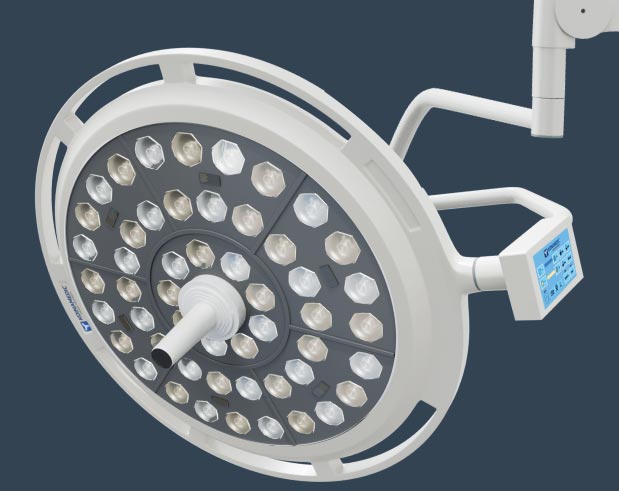

    Curvv Surgical LED Light

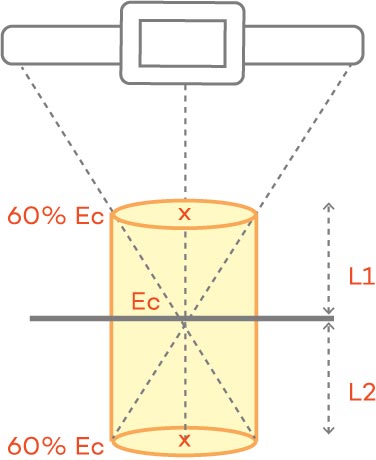

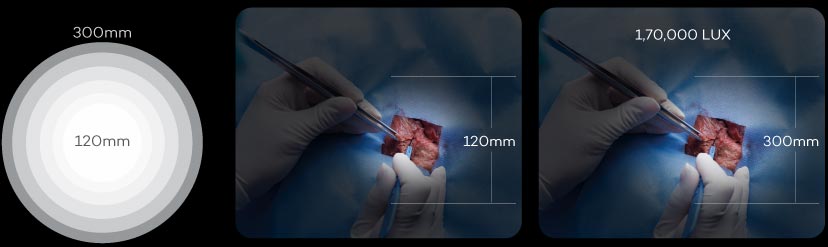

    Supramaximal effective light field

    With high light intensity and large spot size, 1200mm depth of field provides good lighting without having to refocus when the surgical wound location changes. The light head can be positioned far away from the wound to ensure better laminar flow.

    Supramaximal effective light field

    Heat-efficient aluminium body crafted for peak performance

    Superior thermal efficiency, lighter build, low carbon footprint.

    Technical Specifications

    Illumination Intensity

    Illumination Intensity Continous adjustment

    Max. 1,70,000 Lux ±10%

    LED Life Color

    LED Life / Color >60000 Hrs.

    White & Yellow
    (Double Colour)

    Memory Function

    Memory Function

    Saves light settings for quick start

    Adjustable Color Temp

    Adjustable Color Temperature

    4000-5000 K

    Endo Mode

    Endo Mode

    Ideal for endoscopic surgery with a single click

    Colour Rendering Index

    Colour Rendering Index

    95 RA

    Light Field Diameter

    Light Field Diameter

    12-30 cm

    Diameter of Light

    Diameter of Light

    650mm

    No. of LEDs

    No. of LEDs

    52

    Adjustable light intensity

    Adjustable light intensity, Color Temperature and Light Field Diameter

    Light intensity, color temperature, and light field diameter — all easily controlled via the touch screen interface.

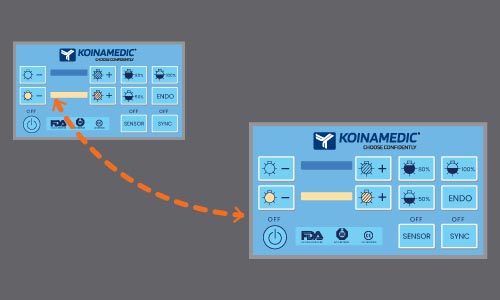

    Synchronization function - optional

    Synchronization function - optional

    In a double light combination, the control panel of the selected light controls the colour temperature, endolight mode and camera of the other light too and enables synchronization of both lights.

    Innovative design of LED lenses

    Innovative design of LED lenses

    The sleek design of LED lenses reduces glare and enables more efficient illumination.

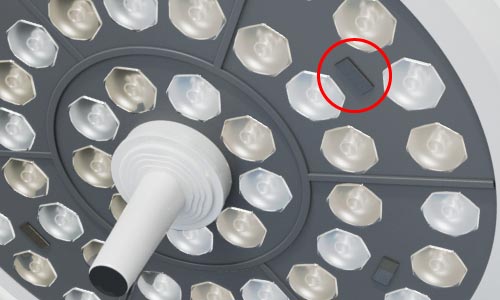

    Smart Sensor in Surgical Light - optional

    Smart Sensor in Surgical Light - optional

    Automatically adjusts LED intensity in real time by detecting the surgeon’s movements, compensating for any obstruction to maintain uniform illumination of the surgical field.

    Wireless Wall Controller - optional

    Wireless Wall Controller - optional

    The wall controller allows control of the light through wireless transmission, even by an attendant located far from the light.

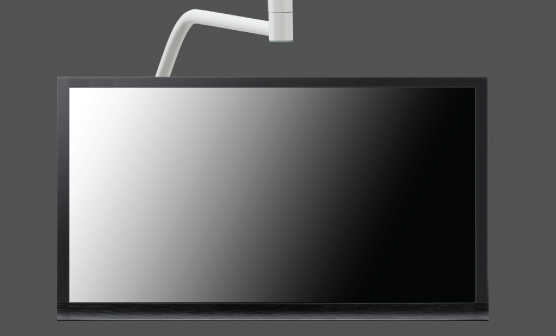

    Monitor

    Monitor - optional

    • Provision to mount a monitor on the third arm of the light.

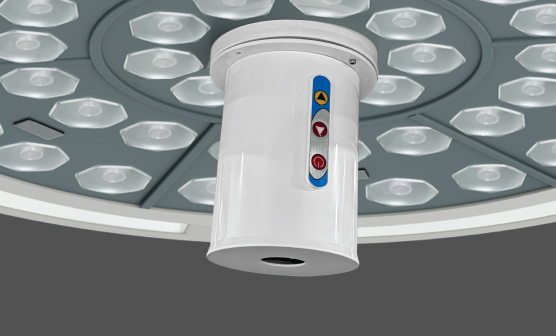

    Digital video recorder

    Digital video recorder Full HD Wireless Camera - optional

    • Supports dual interfaces of HDMI + USB for simultaneous output
    • Laser focusing technology, faster and clearer focusing
    • Supports switching between landscape and portrait modes
    • 10x optical zoom lens, details are not blurred upon magnification
    • 72-degree wide angle, wide shooting range, multiple people can be featured
    • Supports 3 preset positions setting
    • Supports high-definition 1080@60 frame output via HDMI
    • Maximum resolution: 1920*1080
    • Supports 2D/3D noise reduction technology, clean and with fewer noise points
    • Supports menu-based color correction, with higher restoration degree
    • Camera Megapixel 10
