    Equipped with advanced features

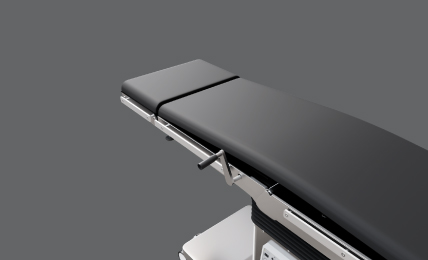

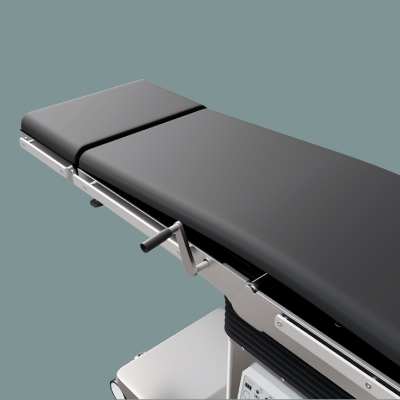

    In built Kidney Bridge

    In-built Kidney Bridge

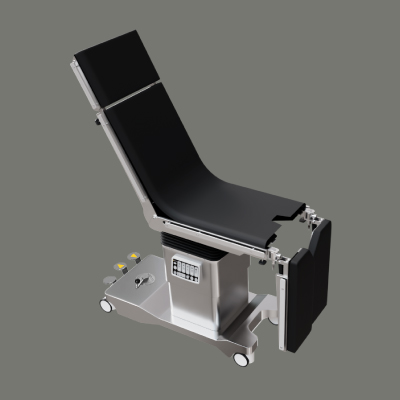

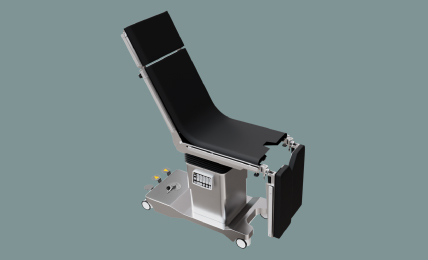

    Chair Position

    Chair Position

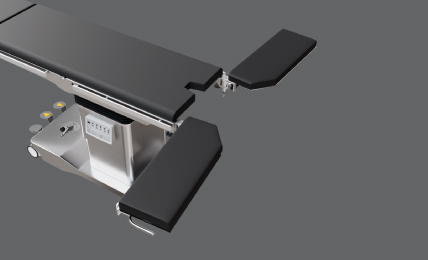

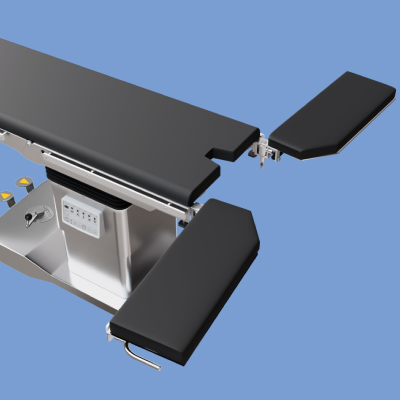

    Split Leg Section

    Split Leg Section

    Optional Features

    Sliding Top

    Sliding Table Top

    Technical Specifications

    Model HYBRID EHO
    Length of Table 2000 mm
    Width of Table Top 540 mm
    Height of Table 750 mm to 1000 mm
    Trendelenburg 25°
    Reverse Trendelenburg 25°
    Lateral Tilt 20°
    Back Section Up/Down 80°/30°
    Head Section Up/Down 30°/55°
    Leg Section 0°-90°
    Floor Locking System Center Floor Locking By Single Foot Lever

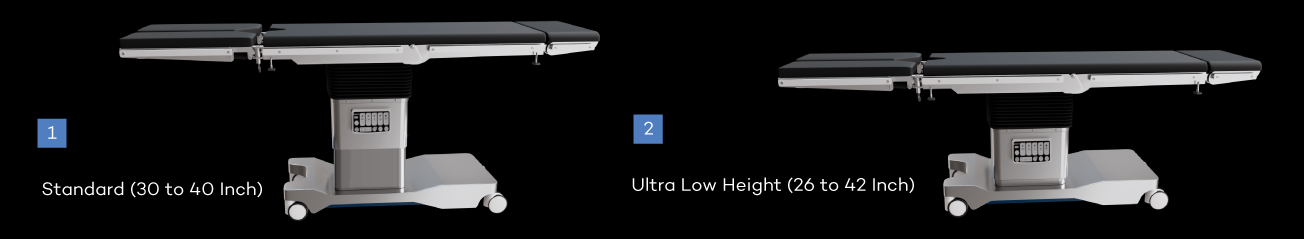

    Available in 2 different variants

    Adjustable maximum and minimum heights for comfortable working, seated or standing.

    Electro-Hydraulic Surgical OT Table

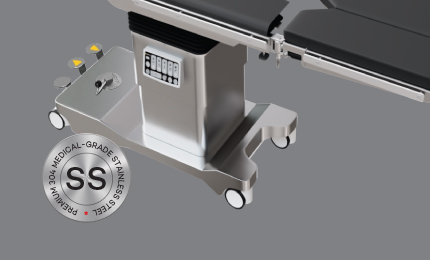

    Premium 304 Medical Grade Stainless Steel

    Premium 304 Medical-Grade Stainless Steel

    Standard Remote

    Standard Remote

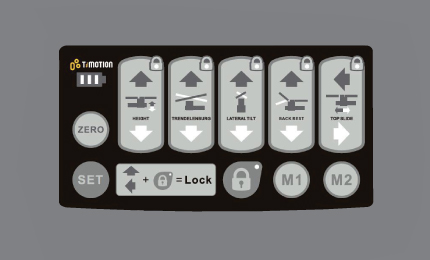

    Optional Control Panel

    (Optional) Standard Control Panel

    Engineered for increasingly complex surgical scenes, Hybrid EHO comes with extreme loads in any position. The modular structure enables it to be adapted to match the size of the patient and in no time at all it can be equipped for any surgical discipline. With the characteristics of high automation low noise and high reliability, Hybrid EHO can be regarded as an ideal electro-hydraulic operating table.

    Salient Features

    • Split Leg Section
    • Stainless Fitting
    • Detachable : head, leg & pelvic section
    • In built kidney bridge
    • Five sectional radio – Translucent Top
    • Base & Cover mode of attractive, easy to clean Stainless Steel
    • Sophisticated mechanics provide smooth, step less articulation of the table top for precise patient positioning.
    • Standby Battery Back-up with recharging circuit.
    • Modular design table top tailored for various surgical discipline needs. The easy click new mounting point enables the table adapted to wide variety of surgery and patient’s height, waterproof design Mattress.
    • Weight load capacity of 300kg ensures safety and stability.
    • Head and Leg Section operated through Gas spring
    • Longitudinal Slide offers up to 250mm of movement for C-arm access without patient repositioning.

    Standard Accessories

    • Remote
    • Arm Rest
    • Side Support
    • Shoulder Support
    • Leg Support
    • Anesthetic Screen
    • Foot Pedal
    • Clamps
    • Mattress

    Table Positions

    • Height Adjustment - Up & Down
    • Lateral Tilt - Left & Right
    • Trendelenburg & Reverse Trendelenburg
    • Flex Position & Reflex Position
    • Manual operated In-built Kidney Bridge

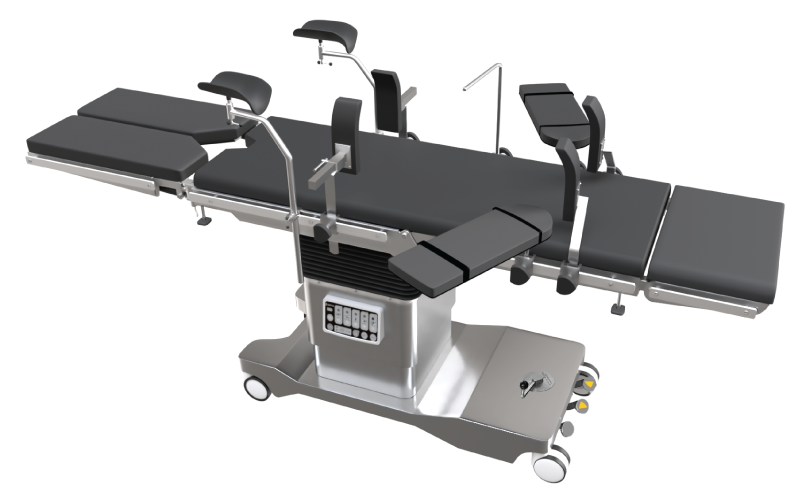

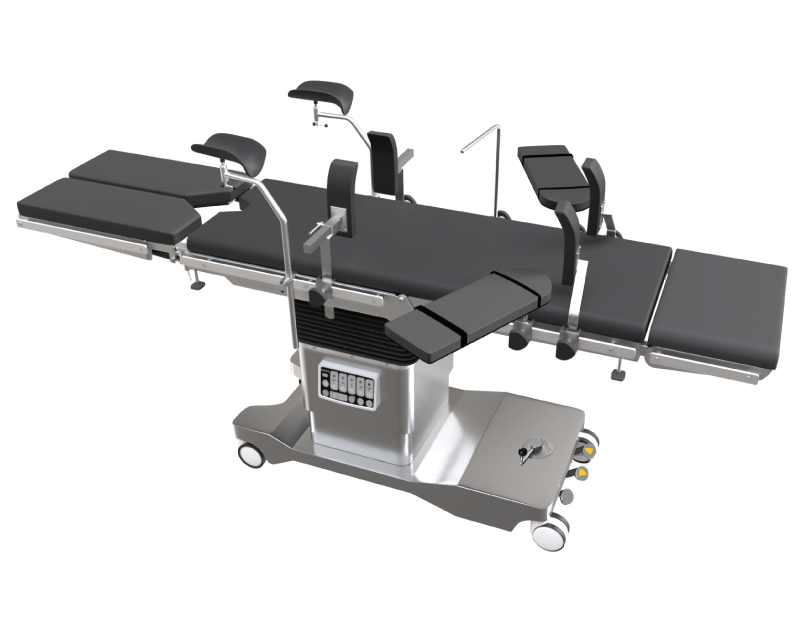

    HYBRID EHO Electro Hydraulic Surgical Table
