Equipped with advanced features

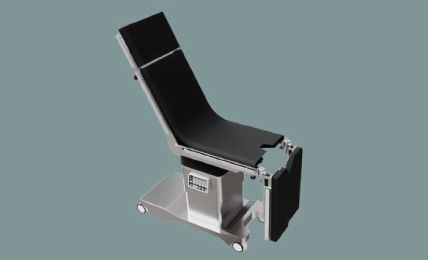

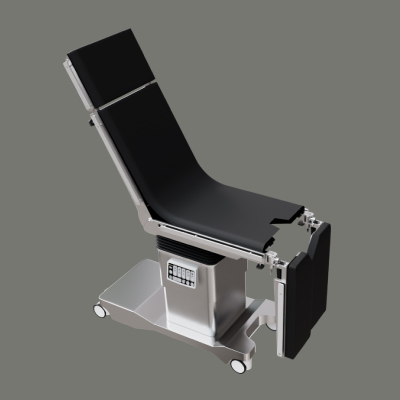

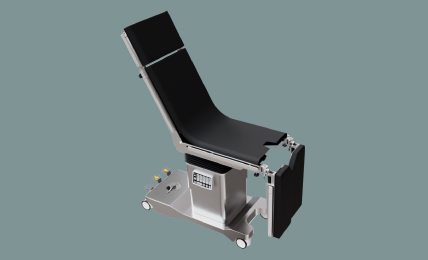

Chair Position

Chair Position

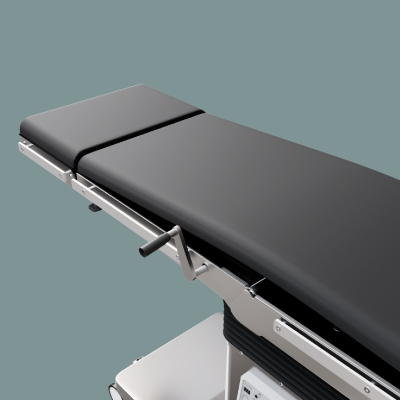

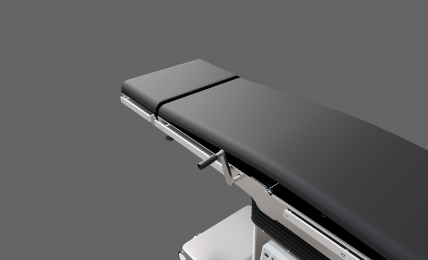

In built Kidney Bridge

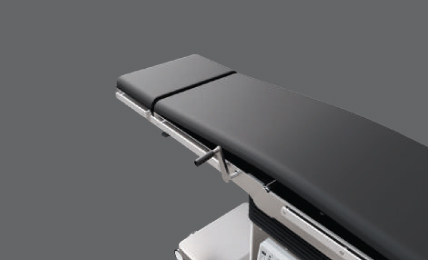

In-built Kidney Bridge

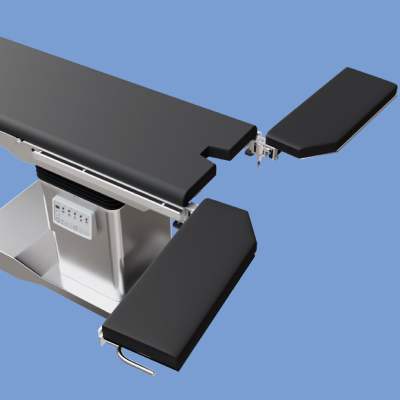

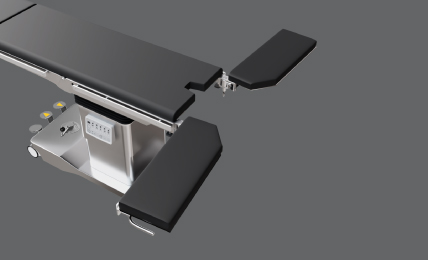

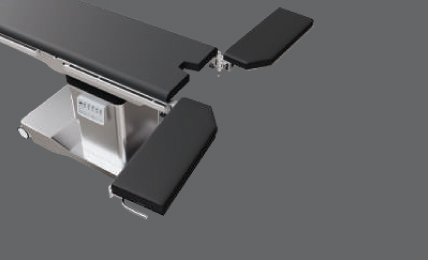

Split Leg Section

Split Leg Section

Optional Features

Ayra OT Table-Feature

Floor Locking by Remote

Sliding Top

Sliding Table Top

Manual Override

Manual Override

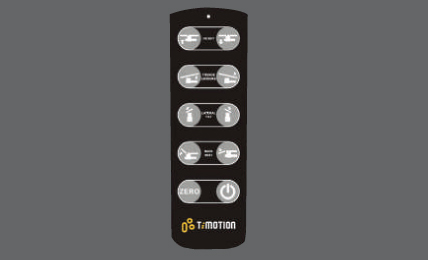

Wireless Remote

Sliding Table Top

Reverse Orientation

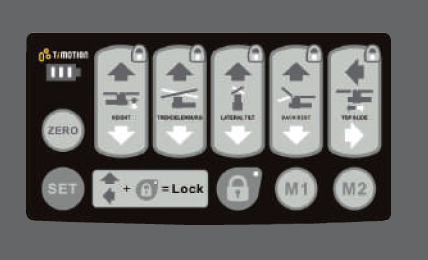

Control Panel

Technical Specifications

Model HYBRID ELECTRIC
Length of Table 2000 mm
Width of Table Top 540 mm
Height of Table 750 mm to 1000 mm
Trendelenburg 25°
Reverse Trendelenburg 25°
Lateral Tilt 20°
Back Section Up/Down 80°/30°
Head Section Up/Down 40°/20°
Leg Section 0°-90°
Floor Locking System Center Floor Locking By Single Foot Lever

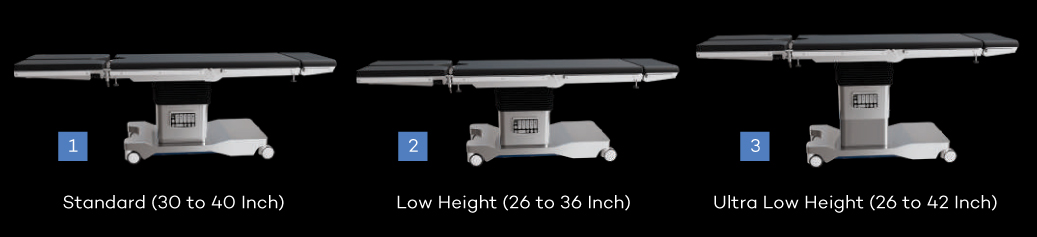

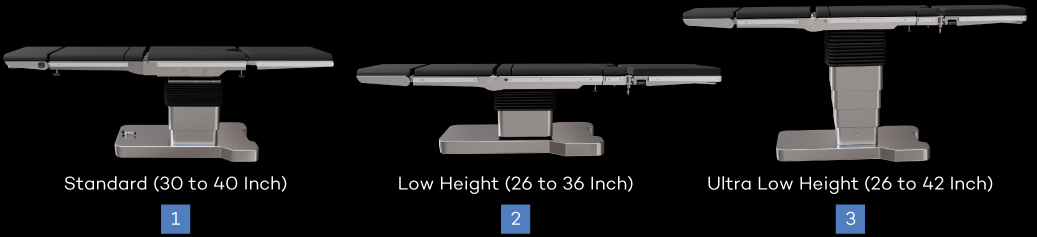

Available in 3 different variants

Adjustable maximum and minimum heights for comfortable working, seated or standing.

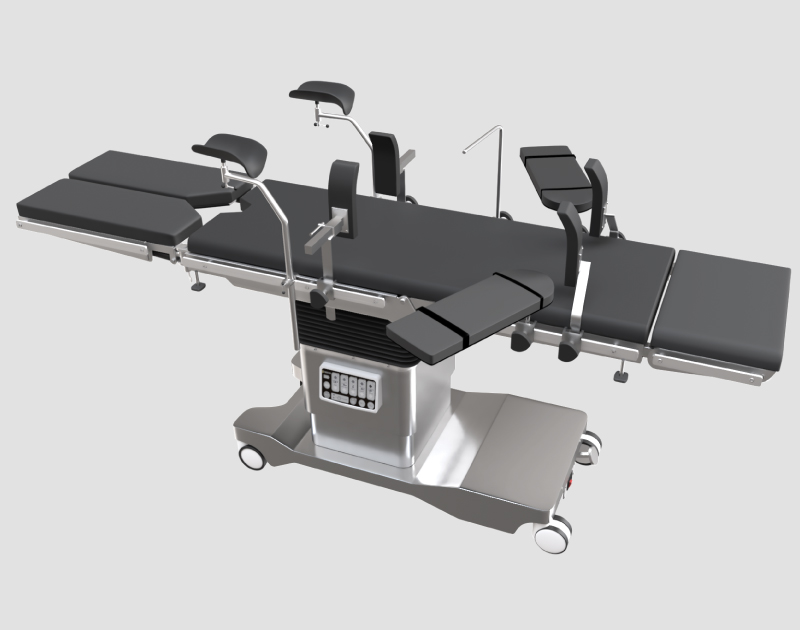

HYBRID Electric Surgical Table Manufacturer

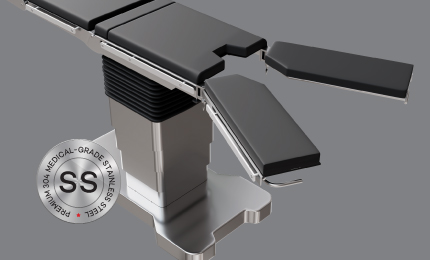

Premium 304 Medical Grade Stainless Steel HYBRID Electric

Premium 304 Medical-Grade Stainless Steel

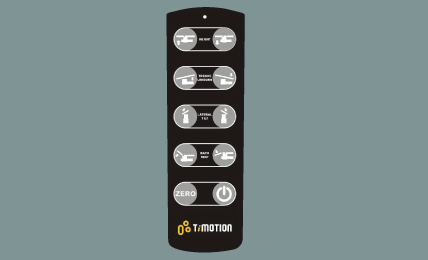

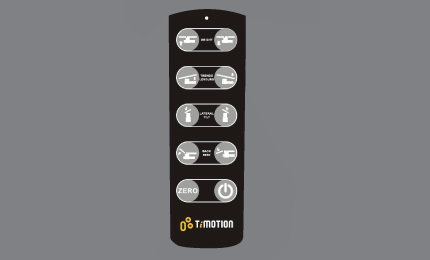

Standard Remote

Standard Remote

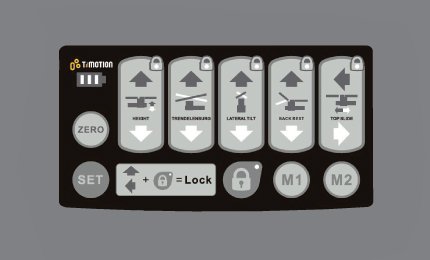

Optional Control Panel

Standard Control Panel

SMPS-based control box ensures better voltage fluctuation handling with zero idle power consumption, meeting new European and American standards. Transformer-based systems are outdated. Includes an ergonomically designed remote with a spiral cable, LED backlit switch, and symbolic position figures for easy use in the dark.

HYBRID Electric Surgical Table

Salient Features

  • Zero position facility i.e by pressing the single button OT Table will come to normal position.
  • Patient reverse orientation mode when head and leg section are interchanged.
  • Stainless steel Covered Base and Column Covers for easy cleaning and hygiene.
  • 2 memory function in control panel.
  • Indication of battery back in the second handset.
  • Anti Bacterial and Anti Fungal Mattress.
  • The Handset is designed with Back LED Indicator for better visibility.
  • Head and foot section is manually operated by the means of Ratchet System.
  • Split Leg Section
  • Center Pillar
  • Stainless Fitting - Detachable, head, leg & Pelvic section
  • In built kidney bridge
  • Five Sectional Radio - Translucent Top.
  • Base & Cover made of attractive, easy to clean Stainless Steel.
  • Sophisticated mechanics provide smooth, step less articulation of the table Top for precise patient positioning.
  • Standby Battery Back-up with recharging circuit.

Standard Accessories

  • Additional Control Panel
  • Remote
  • Arm Rest
  • Side Support
  • Shoulder Support
  • Leg Support
  • Anesthetic Screen
  • Clamps
  • Mattress

Table Positions

  • Height Adjustment - Up & Down
  • Lateral Tilt - Left & Right
  • Trendelenburg & Reverse Trendelenburg
  • Flex Position & Reflex Position
  • Manual operated In-built Kidney Bridge

HYBRID Electric Surgical Table
