Equipped with advanced features

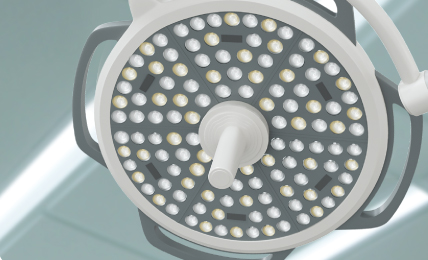

Endo Mode

Endo Mode

Endo mode reduces the overall intensity of the surgical LED light to create a lower ambient illumination level in the operating room. This helps improve the contrast and visibility of the endoscopic images captured during the procedure.

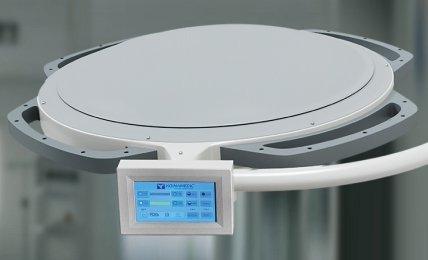

Touch control panel on the light head

Touchscreen streamlined shape control panel on the light head

Includes illumination intensity adjustment, color temperature adjustment, endo mode, memory function, and power on/off.

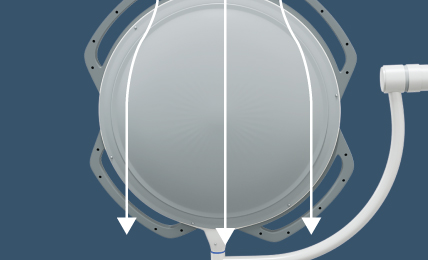

Meets modern laminar flow OR requirements

Meets modern laminar flow OR requirements

The open design of the light reduces the surface area that impedes the flow of air from the air supply ceilings, resulting in a less turbulent flow underneath the light.

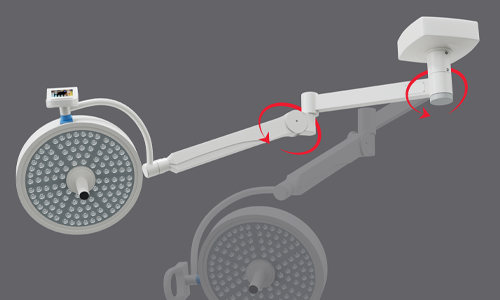

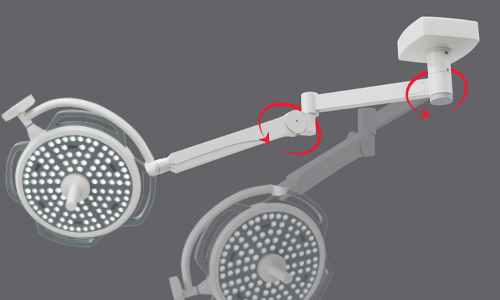

360° Rotation Body

360 Degree rotation body in aluminum

This enhancement ensures the light arms maintain excellent stability and offer precise positioning in any direction, allowing effortless adjustments with full 360° rotation.

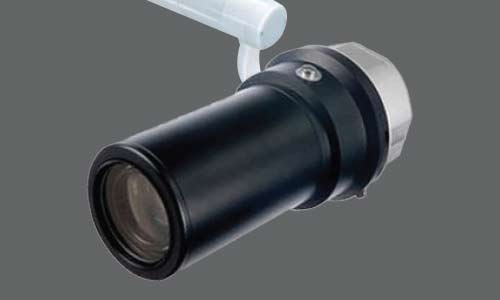

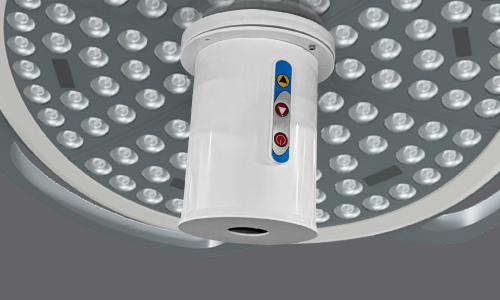

Digital video recorder Full HD Camera

Digital video recorder - Full HD Camera

  • Support Digital Signal LVDS and Network Signal Video Output
  • Starlight Low Illumination, 0.001Lux/F1.5(Color), 0.0005Lux/F1.5(B/W), 0 Lux with IR
  • Support 3D Digital Noise Reduction, High Light Suppression
  • Integrated central camera or independent third-arm camera-optional

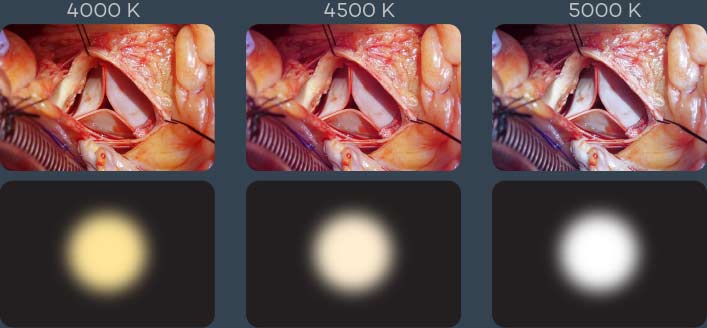

Adjustable Colour Temperature

Komax LED lights are capable of producing a wide range of color temperatures between 4000-5000 K, allowing users to adjust the lighting to suit different purposes, environments, and preferences. Adjustable color temperature allows surgeons to fine-tune the lighting to match their specific needs for different procedures.

Adjustable Colour Temperature

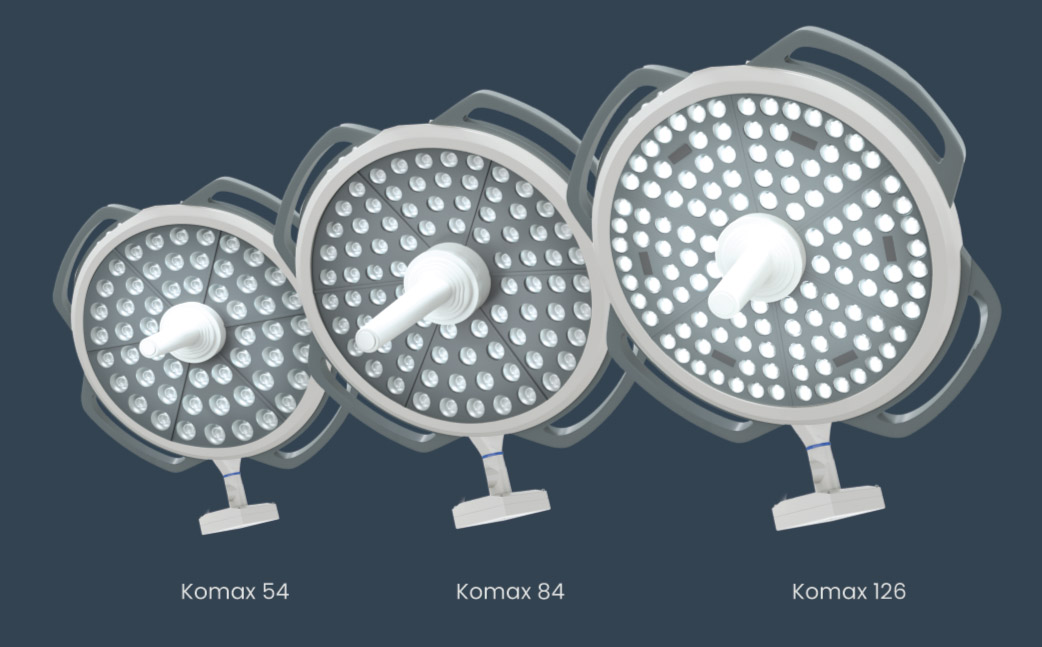

Komax Series

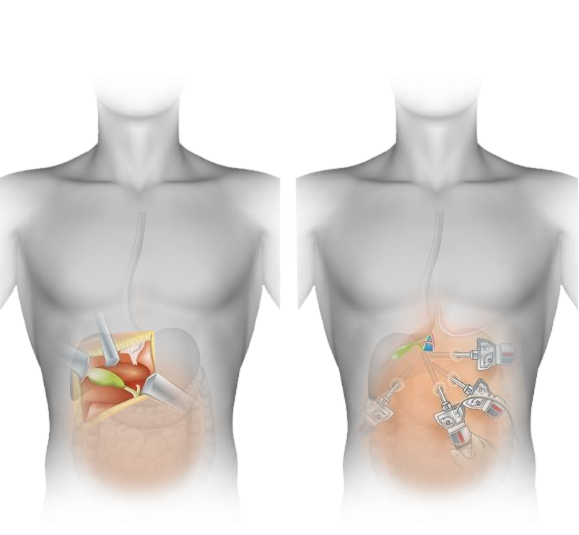

Minimally Invasive Surgery

Unlike open surgery, minimally invasive procedures involve making several small incisions, typically spread over a wide area. Komax Light incorporates an innovative bionic "compound eye structure" lens design, offering an expansive 60cm light field. This wide coverage effectively illuminates the entire chest and abdomen, eliminating the need for frequent adjustments of the light head during surgery.

Complete Coverage of Chest and Abdomen

Complete Coverage of Chest and Abdomen

Minimally invasive surgery

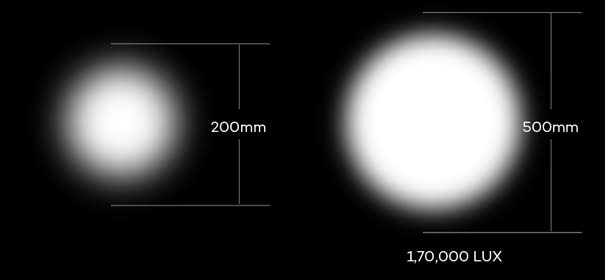

Supramaximal effective light field

With high light intensity and large spot size, 1200mm depth of field provides good lighting without having to refocus when the surgical wound location changes. The light head can be positioned far away from the wound to ensure better laminar flow.

Supramaximal effective light field

Standard Specifications

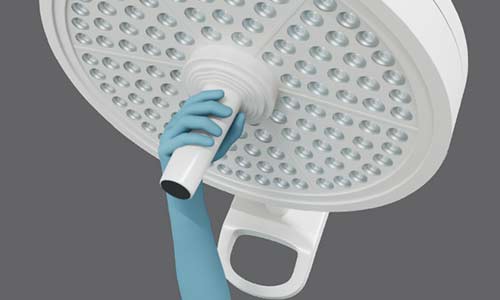

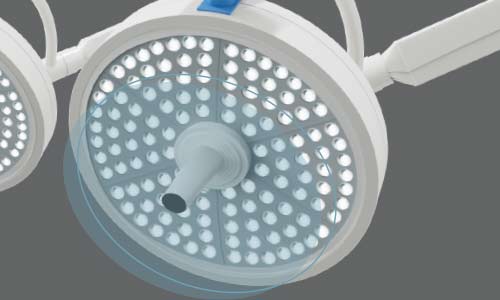

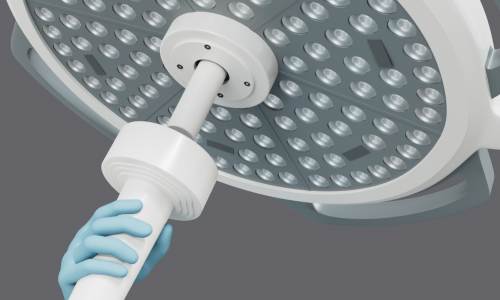

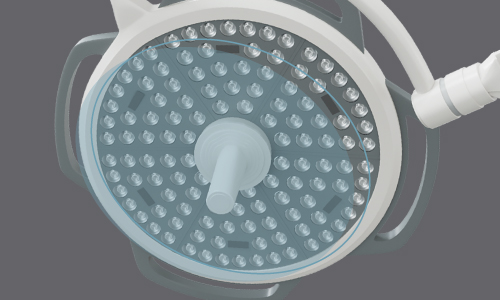

Shadow less Light, Memory Function, High quality sterilizable handle, With protective fire resistant ESG safety glass for scratch proof, fast disinfection process, protects UV and IR rays and improve light penetration. Body is made of high quality fire resistant polymer. Single non winged round shape lamp head for easy maintenance and better sealing against dust and fumigation.

Komax LED OT Lights

Adjustable Colour Temp.

Komax LED OT Lights

Memory Function

Komax LED OT Lights

Endo Mode

Size of Light Head

500 mm

Min and Max Light Intensity

Min: 00000 / Max: 1,70,000 Lux

Color Temperature Range

4000-5000 k (Adjustable)

Color Rendering Index

95 RA

Color of LED

Combination of Yellow & White

LED Life

> 60000 Hrs

Power Supply

220 V / 50 Hz AC

Focusing Adjustable

Yes (Manually)

360 Rotation

Yes

Monitor / Camera

Yes (Optional)

3rd Arm

Yes (Optional)

Wireless Controller

Yes (Optional)

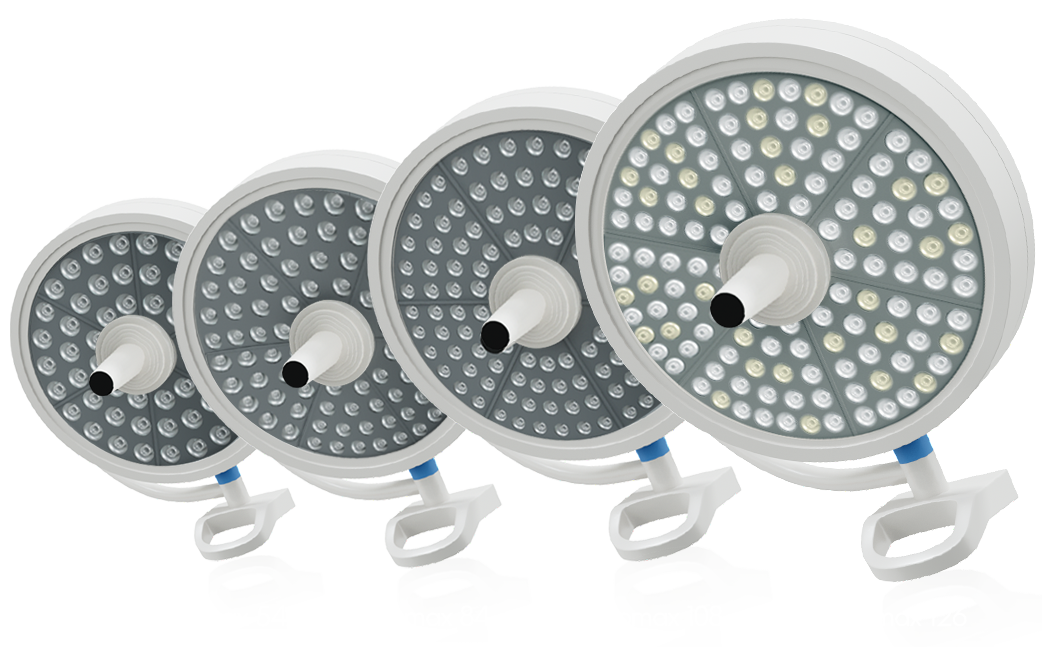

Variants

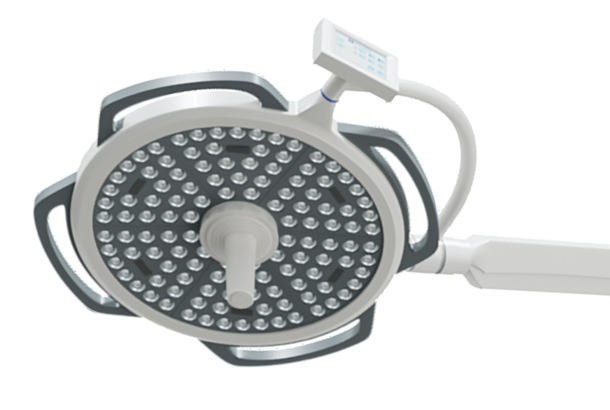

Komax 126

Komax 126

Intensity 1,70,000 ±10%
Number of LED 126
Diameter of Light 500mm

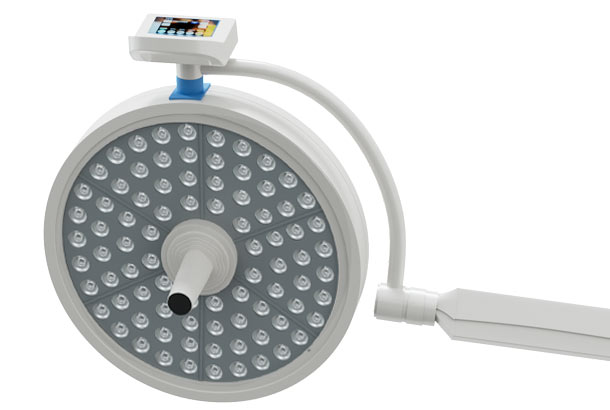

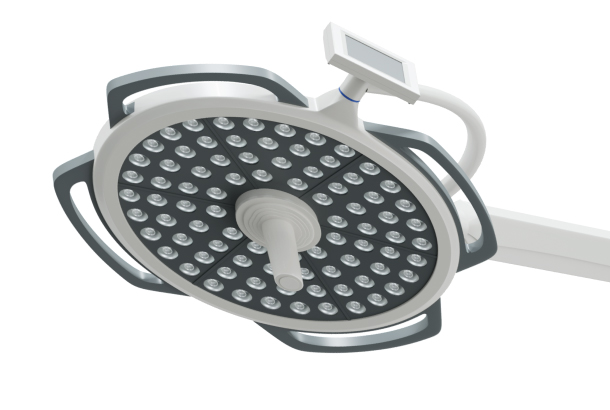

Komax 84

Komax 84

Intensity 1,50,000 ±10%
Number of LED 84
Diameter of Light 500mm

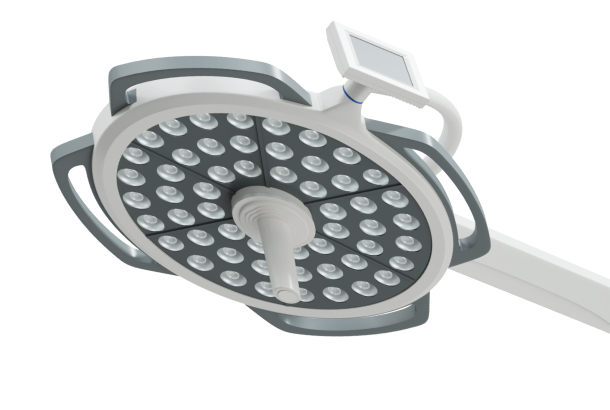

Komax 54

Komax 54

Intensity (Lux) at 1 meter 1,50,000 ±10%
Number of LED 54
Diameter of Light 500mm

Model Komax 126 Komax 84 Komax 54
Design (Light Head) Komax 126 Komax 84 Komax 54

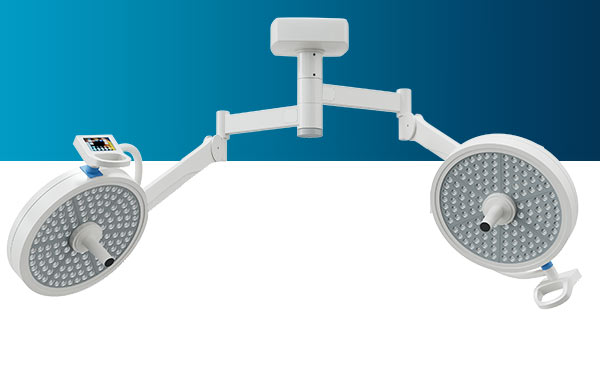

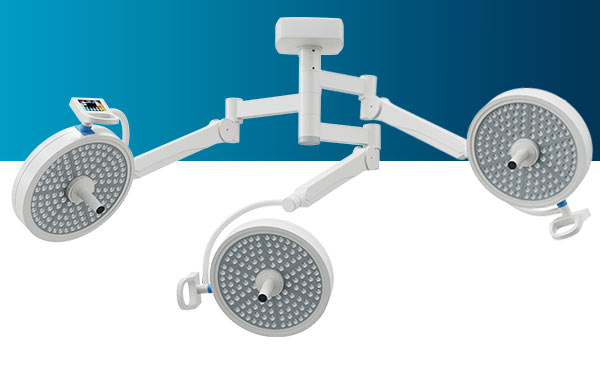

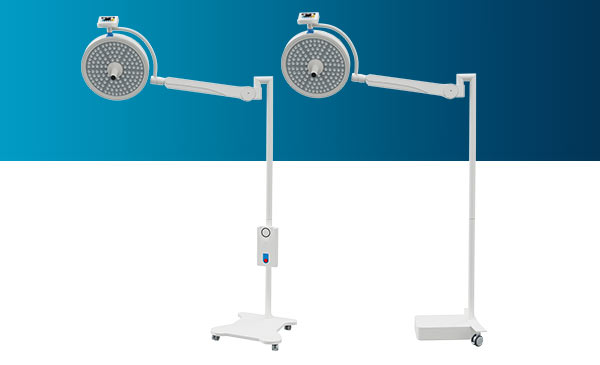

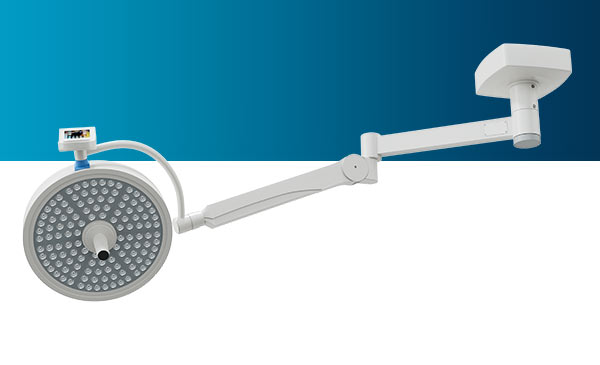

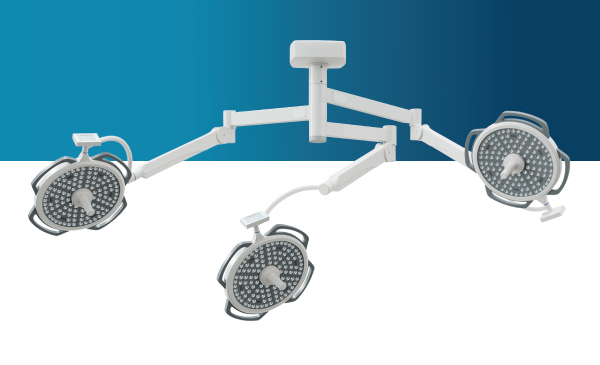

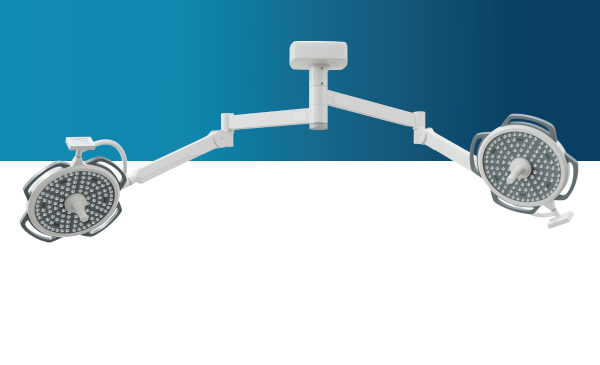

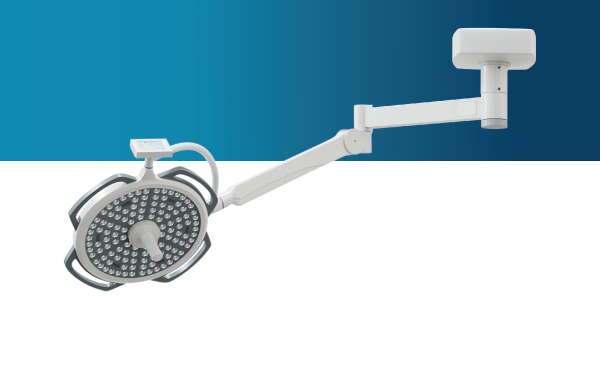

Installation Single/Dual/Triple Ceiling Mobile
Wall Mounting
Single/Dual/Triple Ceiling

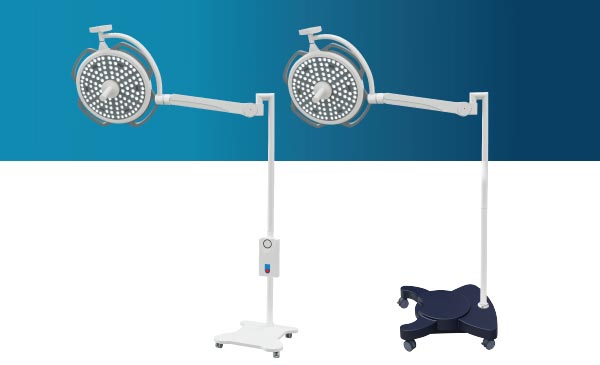

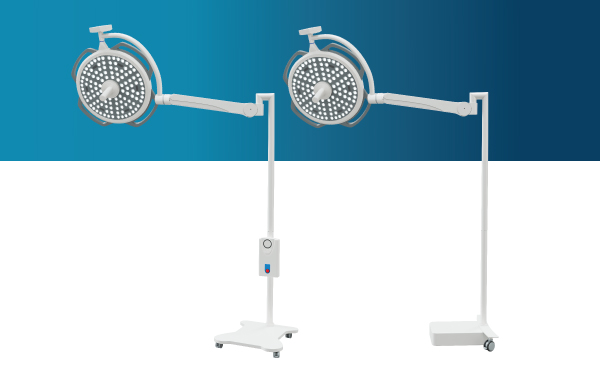

Mobile
Wall Mounting
Single/Dual/Triple Ceiling
Mobile
Wall Mounting
Colour of LED White & Yellow
Dual Colour
White & Yellow
Dual Colour
White & Yellow
Dual Colour
No. of LED (ea) 126 84 54
Intensity (Lux) 1,70,000 ±10% 1,50,000 ±10% 1,50,000 ±10%
Intensity Control 10 step 10 step 10 step
CRI (Ra) 95 95 95
Color Temperature (K) 4000-5000 Adjustable 4000-5000 Adjustable 4000-5000 Adjustable
Light Field Size (cm) 12-30 12-30 12-30
Diameter of Light (mm) 500 500 500
Focusing Adjustable Adjustable Adjustable
LED Life Span (Hrs.) >60000 >60000 >60000
Detachable Center Grip Yes (2X) Yes (2X) Yes (2X)
Power Consumption (W) 150 100 100
Monitor / Camera Optional Optional Optional
Screen / Wall Controller Optional Optional Optional
Battery Backup Optional Optional Optional
Smart Sensor (ea) Optional N/A N/A
Certification CE / FDA / EU MDR CE / FDA / EU MDR CE / FDA / EU MDR
