Features
- The basic model with lightweight design
- Meet the most clinical demands on neurosurgery and spinal, etc.
- Suitable for both pediatric and adults.
- Produced from standard aluminum alloy and stainless steel, ensuring good durability and strength.
- Stable, high-precision 3-point fixation of the head,
- Easy fixation ball socket adaptor provide good view.
- Support patient in prone, supine, lateral and sitting
Components
- Silica Headrest *1
- Skull Pins Adult *3
- Skull Pins Child *3Head Clamp *1
- Ball Socket Adaptor *1
- Base Unit *1

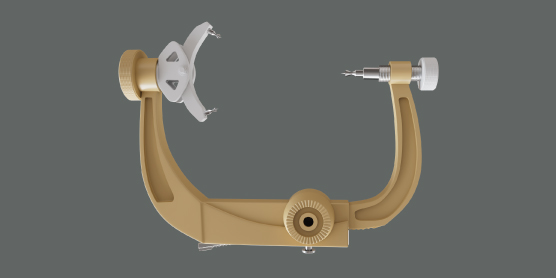

Head Clamp
- Produce from a whole block of aluminum alloy by CNC, high strength.
- Lightweight design, easy set and use.
- The clamping width from 12cm-24cm (pin to pin).
- Clamping deepth up to 13cm (from single pin side tip to bottom)

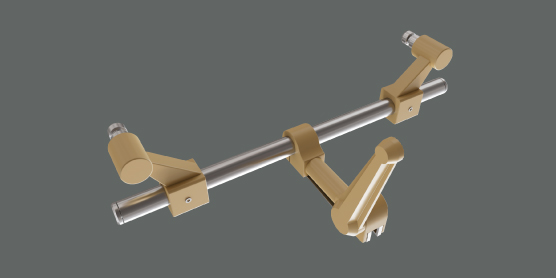

Base Unit
- Maximum adaptive width 55cm (from rod to rod).
- Easy lock handle.
- Adjusting screw could set the tighten force.
- Connect teeh could match with DORO/Mayfield swivel adaptor

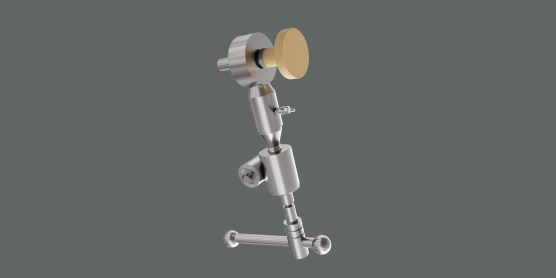

Ball Socket Adaptor
- Stainless made ball socket, stable and durable, easy set the position.
- High precision processing technology provide the firmly locking of the joint.

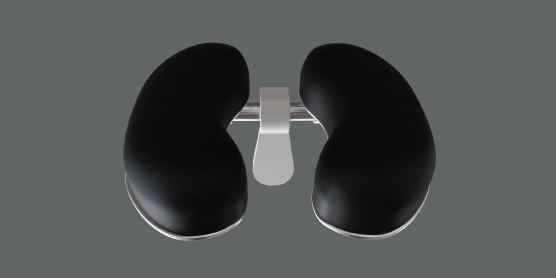

Silica Headrest
- Horseshoe shaped headrest provides cranial support in the prone or supine position for infants and young children.
- Adjustable pad base accommodates various head sizes. Easily cleaned
